Burst Disk Valve
Single metal construction,no fragments design
Size range: 15mm-400mm
Burst pressure range: 2.5barg-285barg.
Operating ratio 85%
(Max.operating pressure up to 85% of the min.bursting pressure)
Applicable to liquid and gas fluid
Can be in combination with safety valves
Material : SS, Monel, Nickel , Hastelloy C-276 , inconel ,etc
Product Overview

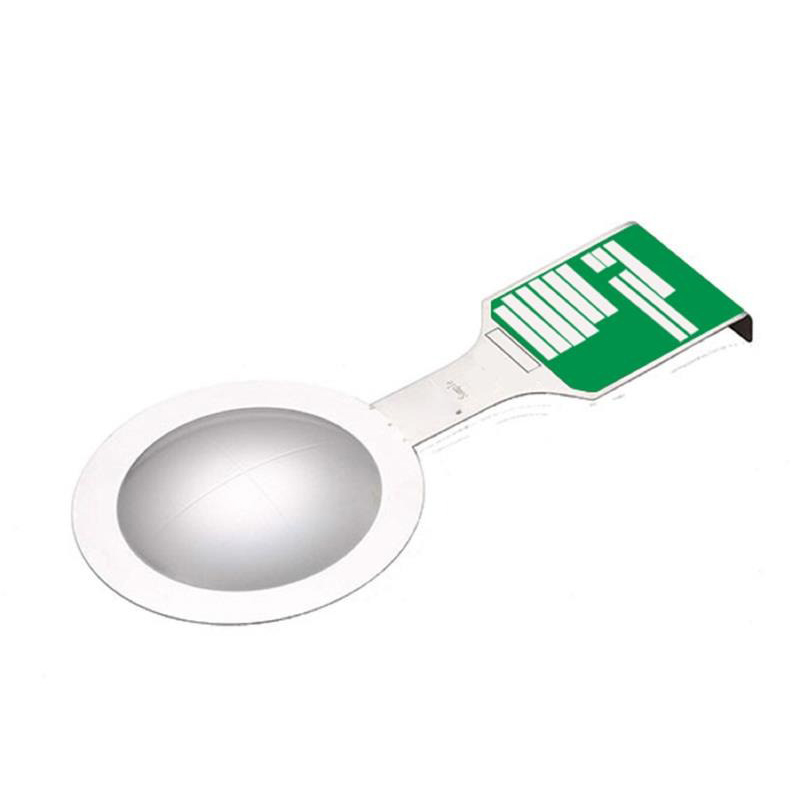

Forward acting rupture disk is designed with scored lines build-up on the concave side of the disk.
The disk opens along pre-weakened scored lines to provide a full relief at bursting pressure.
Options
-TEF coating or FEP lining
- Rupture Sensor
Suitable for Safety Valve Protection
Rupture disks in combination with safety valves can prevent corrosion of valve internals.
Tell-Tale Accessory：Pressure Gauge、Tee、Excess Flow Valve、Tube
Bursting Pressure Ranges - psig(barg)@72°F(22)/
Size | Nickel | Monel | Inconel | ||||||||||
NPS (in) | DN (mm) | (Psig) | (barg) | (Psig) | (barg) | (Psig) | (barg) | ||||||
min. | max | min. | max | min. | max | min. | max | min. | max | min. | max | ||
1" | 25 | 145 | 551 | 10 | 38 | 159.5 | 1450 | 11 | 100 | 116 | 2900 | 8 | 200 |
1.25" | 32 | 116 | 420.5 | 8 | 29 | 116 | 1131 | 8 | 78 | 94.25 | 2320 | 6.5 | 160 |
1.5" | 40 | 101.5 | 319 | 7 | 22 | 101.5 | 906.25 | 7 | 62.5 | 94.25 | 2102.5 | 6.5 | 145 |
2" | 50 | 58 | 275.5 | 4 | 19 | 89.9 | 797.5 | 6.2 | 55 | 79.75 | 1740 | 5.5 | 120 |
2.5" | 65 | 72.5 | 246.5 | 5 | 17 | 69.6 | 710.5 | 4.8 | 49 | 60.9 | 2320 | 4.2 | 160 |
3" | 80 | 58 | 181.25 | 4 | 12.5 | 60.9 | 551 | 4.2 | 38 | 58 | 2247.5 | 4 | 155 |
4" | 100 | 43.5 | 130.5 | 3 | 9 | 50.75 | 406 | 3.5 | 28 | 108.75 | 1711 | 7.5 | 118 |
5" | 125 | 39.15 | 108.75 | 2.7 | 7.5 | 43.5 | 340.75 | 3 | 23.5 | 87 | 1450 | 6 | 100 |
6" | 150 | 36.25 | 108.75 | 2.5 | 7.5 | 46.4 | 304.5 | 3.2 | 21 | 79.75 | 1203.5 | 5.5 | 83 |
8" | 200 | 26.1 | 84.1 | 1.8 | 5.8 | 36.25 | 232 | 2.5 | 16 | 60.9 | 928 | 4.2 | 64 |
10" | 250 | 29 | 68.15 | 2 | 4.7 | 40.6 | 188.5 | 2.8 | 13 | 49.3 | 754 | 3.4 | 52 |
12" | 300 | 24.65 | 56.55 | 1.7 | 3.9 | 36.25 | 152.25 | 2.5 | 10.5 | 40.6 | 609 | 2.8 | 42 |
14" | 350 | 21.75 | 50.75 | 1.5 | 3.5 | 31.9 | 136.3 | 2.2 | 9.4 | 58 | 536.5 | 4 | 37 |
16" | 400 | 18.85 | 43.5 | 1.3 | 3 | 27.55 | 116 | 1.9 | 8 | 30.45 | 1740 | 2.1 | 120 |
Max.Temp. | 400℃ | 430℃ | 480℃ | ||||||||||
Size | Stainless Steel | Hastelloy C-276 | |||||||
NPS (in) | DN (mm) | (Psig) | (barg) | (Psig) | (barg) | ||||
min. | max | min. | max | min. | max | min. | max | ||
1" | 25 | 232 | 3262.5 | 16 | 225 | 159.5 | 2175 | 11 | 150 |
1.25" | 32 | 145 | 2972.5 | 10 | 205 | 123.25 | 1682 | 8.5 | 116 |
1.5" | 40 | 123.25 | 2900 | 8.5 | 200 | 174 | 1305 | 12 | 90 |
2" | 50 | 145 | 2755 | 10 | 190 | 145 | 1160 | 10 | 80 |
2.5" | 65 | 91.35 | 2537.5 | 6.3 | 175 | 110.2 | 870 | 7.6 | 60 |
3" | 80 | 123.25 | 2465 | 8.5 | 170 | 101.5 | 826.5 | 7 | 57 |
4" | 100 | 130.5 | 2102.5 | 9 | 145 | 101.5 | 638 | 7 | 44 |
5" | 125 | 79.75 | 1812.5 | 5.5 | 125 | 84.1 | 536.5 | 5.8 | 37 |
6" | 150 | 84.1 | 1740 | 5.8 | 120 | 108.75 | 420.5 | 7.5 | 29 |
8" | 200 | 62.35 | 1232.5 | 4.3 | 85 | 79.75 | 319 | 5.5 | 22 |
10" | 250 | 50.75 | 1015 | 3.5 | 70 | 140.65 | 261 | 9.7 | 18 |
12" | 300 | 79.75 | 928 | 5.5 | 64 | 116 | 232 | 8 | 16 |
14" | 350 | 108.75 | 681.5 | 7.5 | 47 | 104.4 | 203 | 7.2 | 14 |
16" | 400 | 36.25 | 580 | 2.5 | 40 | 89.9 | 174 | 6.2 | 12 |
Max.Temp. | 400℃ | 530℃ | |||||||
Data above are for reference only. Due to the material constraints, the actual values may differ.
Piease contact us for more.
Bursting Disc Device
A bursting disc device is a non-reclosing pressure relief component. It operates when static pressure at the inlet reaches a specified level, causing the pressure-bearing diaphragm to rupture and release the excess pressure. In simple terms, it is a single-use safety device: under the designated burst temperature, once the pressure differential across the disc reaches the preset value, the disc will rupture or detach to discharge the medium.
The design and production of bursting discs must meet the requirements of applicable safety technical standards. Each product must be delivered with a quality certificate and equipped with a secure metal nameplate.
FAQ
Q1: What is your company’s main business, and do you have the necessary certifications?
A1: We focus on industrial explosion protection and pressure relief safety technologies. Our main products include bursting discs, flame arresters, explosion isolation valves, and flameless venting systems.
We hold the Special Equipment Manufacturing License (for bursting disc devices) issued by the State Administration for Market Regulation (SAMR). All products comply with national standards such as GB/T 567 and TSG ZF003, and we can also provide international certifications including ATEX and PED upon request.
Q2: How should I choose the correct device for my application?
A2: Proper selection requires the following essential parameters:
Medium: Type and composition (e.g., gases, liquids, or dust such as hydrogen, methane, or corn starch dust).
Operating Pressure & Temperature: Normal working conditions.
Burst/Design Pressure & Temperature: Activation pressure and the temperature of the medium at that moment.
Relief Capacity / Line Size: Required discharge capability or pipeline nominal diameter (DN).
Installation Environment: Indoor or outdoor, mounted on equipment or at a pipeline end.
Additional Requirements: Corrosion resistance, vacuum support, leakage detection, etc.
Call to Action:
Provide the above details, and our technical engineers will offer free professional equipment selection.
